| Désignation | Référence | Qté |
|---|
| Désignation | Référence | Qté |
|---|
| Référence | Désignation | Prix Unitaire TTC | Qté | |||
|---|---|---|---|---|---|---|
| # 1 |
21200-02820-000 2120002820000 2120002820000 |
GEAR ASSY, PRIMARY DRIVEN
CLOCHE D'EMBRAYAGE
|
||||
| # 2 |
09160-25037-000 0916025037000 0916025037000 |
RONDELLE 25.1X54X2.5
WASHER, 25X54X2.5
|
||||
| # 2 |
09160-25071-000 0916025071000 0916025071000 |
WASHER, 25X54X2.5
|
||||
| # 3 |
09263-35017-000 0926335017000 0926335017000 |
ROULEMENT A AIG. 35X40X35.8
BEARING (35X40X35.8)
|
||||
| # 4 |
21410-02F10-000 2141002F10000 2141002F10000 |
HUB, CLUTCH SLEEVE
NOIX
|
||||
| # 5 |
21610-02F12-000 2161002F12000 2161002F12000 |
CLUTCH CAM SET
NOIX COMPLETE
|
||||
| # 6 |
21481-02F10-000 21481-02F12-0002148102F10000 |
BOLT, CLUTCH SPRING SUPPORT
BOLT, SPRING SURPORT |
||||
| # 7 |
21413-02F10-000 2141302F10000 2141302F10000 |
SPRING, CLUTCH
|
||||
| # 8 |
21441-02F11-000 2144102F11000 2144102F11000 |
CLUTCH DRIVE PLATE
DISQUE D'EMBRAYAGE
|
||||
| # 8 |
21441-02F30-000 2144102F30000 2144102F30000 |
DISQUE D'EMBRAYAGE
|
||||
| # 9 |
21442-02F10-000 21442-02F11-0002144202F10000 |
CLUTCH DRIVE PLATE 2
PLATE, CLUTCH DRIVE NO.2 |
||||
| # 10 |
21451-02F10-000 2145102F10000 2145102F10000 |
PLATE, CLUTCH DRIVEN
|
||||
| # 10 |
21451-02F30-000 2145102F30000 2145102F30000 |
PLATE, CLUTCH DRIVEN
|
||||
| # 11 |
21462-02F10-000 2146202F10000 2146202F10000 |
DISK, CLUTCH PRESSURE
|
||||
| # 12 |
21471-02F10-000 2147102F10000 2147102F10000 |
SEAT, WAVE WASHER
WASHER
|
||||
| # 13 |
21472-02F10-000 2147202F10000 2147202F10000 |
WASHER, CLUTCH PLATE WAVE
|
||||
| # 14 |
21482-02F10-000 21482-02F12-0002148202F10000 |
BOLT, CLUTCH SPRING
BOULON |
||||
| # 15 |
09159-24010-000 0915924010000 0915924010000 |
ECROU, MOYEU D'EMBRAYAGE
ECROU
|
||||
| # 16 |
09160-25056-000 0916025056000 0916025056000 |
RONDELLE 25X50X2.5
WASHER, CLUTCH SLEEVE
|
||||
| # 16 |
09160-25072-000 0916025072000 0916025072000 |
WASHER, 25X50X2.5
WASHER, CLUTCH SLEEVE
|
||||
| # 17 |
09164-24006-000 0916424006000 0916424006000 |
RONDELLE ELASTIQUE 24.2X35X2
WASHER, CLUTCH SLEEVE
|
||||
| # 18 |
23110-38B00-000 2311038B00000 2311038B00000 |
TIGE POUSSER D'EMBRAYAGE
ROD, CLUTCH PUSH RH
|
||||
| # 19 |
23111-24A01-000 2311124A01000 2311124A01000 |
TIGE POUSSER D'EMBRAY.G. 108.5
TIGE EMBRAYAGE
|
||||
| # 20 |
23121-38B00-000 2312138B00000 2312138B00000 |
PIECE POUSSER D'EMBRAYAGE
PIECE, CLUTCH PUSH
|
||||
| # 21 |
23160-02F11-000 23160-02F21-0002316002F11000 |
CYLINDER, CLUTCH RELEASE
MAITRE CYLINDRE |
||||
| # 22 |
23163-10F00-000 2316310F00000 2316310F00000 |
CUP
BOUCHON
|
||||
| # 23 |
23164-10F00-000 2316410F00000 2316410F00000 |
SPRING
|
||||
| # 24 |
59121-01A00-000 5912101A00000 5912101A00000 |
VIS D'EVACUATION D'AIR
VIS DE PURGE
|
||||
| # 25 |
59122-01A00-000 5912201A00000 5912201A00000 |
CAPUCHON
|
||||
| # 26 |
04221-08149-000 0422108149000 0422108149000 |
BOULON
PIN, CLUTCH RELEASE CYLINDER |
||||
| # 27 |
07130-06653-000 07130-0665B-0000713006653000 |
BOLT. CL RLSE CYL
BOLT, CLUTCH RELEASE CYLINDER |
||||
| # 28 |
07130-06703-000 07130-0670B-0000713006703000 |
BOLT. CL RLSE CYL
BOLT, CLUTCH RELEASE CYLINDER |
||||
| # 29 |
09160-15045-000 0916015045000 0916015045000 |
RONDELLE 15, 5X28X1
WASHER, CLUTCH PUSH
|
||||
| # 30 |
09180-06322-000 0918006322000 0918006322000 |
SPACER
SPACER, CLUTCH RELEASE
|
||||
| # 31 |
09263-15003-000 0926315003000 0926315003000 |
ROULEMENT A AIGUILLE 15X28X2
BEARING, CLUTCH PUSH
|
||||
| # 32 |
09283-06007-000 09285-06015-0000928306007000 |
SIMMER 6X34X5.5
SEAL, CLUTCH PUSH |

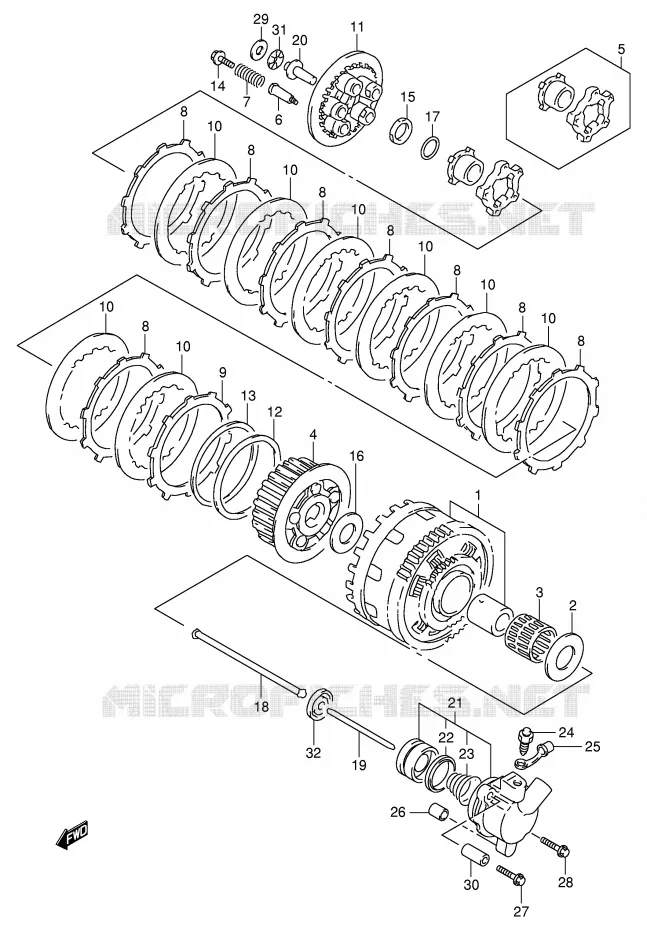

Suzuki TL-R
Cylindrée: 1000 cc Année: 2001 Code modèle TL1000RK1(E2)
