| Référence | Désignation | Prix Unitaire TTC | Qté | |||
|---|---|---|---|---|---|---|

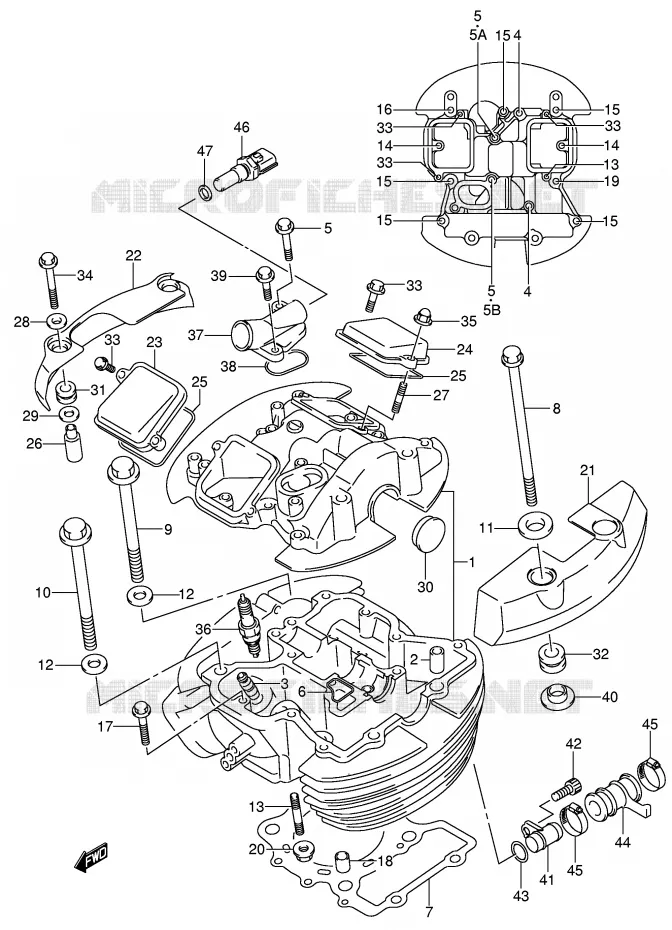

| # 1 |
11101-41FA0-000 1110141FA0000 1110141FA0000 |
FR CYLINDER HEAD
HEAD, CYLINDER |
||||
| # 1 |
11101-41F00-000 1110141F00000 1110141F00000 |
HEAD ASSY, CYLINDER FRONT
HEAD, CYLINDER |
Non disponible | |||
| # 2 |
09206-11004-000 0920611004000 0920611004000 |
PIN
PIN (11X14) |
||||
| # 3 |
11115-38A71-000 11115-41F70-0001111538A71000 |
GUIDE, VALVE (OS 0.3)
|
||||
| # 4 |
09103-06101-000 0910306101000 0910306101000 |
BOLT, 6X50
BOULON |
||||
| # 5 |
09103-06102-000 0910306102000 0910306102000 |
VIS M6X55
BOLT 6X55 |
||||
| # 5A |
09103-06102-000 0910306102000 0910306102000 |
VIS M6X55
BOULON |
||||
| # 5B |
07130-06803-000 07130-0680B-0000713006803000 |
BOLT (L:80)
|
||||
| # 6 |
11123-38A00-000 1112338A00000 1112338A00000 |
BAGUE DE JOINT
GASKET, CYLINDER HEAD COVER |
||||
| # 7 |
11141-41F00-000 1114141F00000 1114141F00000 |
GASKET, CYLINDER HEAD FRONT
JOINT DE CULASSE |
||||
| # 8 |
09103-08370-000 0910308370000 0910308370000 |
BOLT, CYL HEAD COVER(L250)
BOULON |
||||
| # 9 |
09103-10133-000 0910310133000 0910310133000 |
VIS M10X155
BOLT (10X155) |
||||
| # 10 |
09103-10134-000 0910310134000 0910310134000 |
VIS M10X165
BOLT, 10X165 |
||||
| # 11 |
09160-08130-000 0916008130000 0916008130000 |
WASHER (8.5X24X1.6)
|
||||
| # 12 |
09160-10039-000 0916010039000 0916010039000 |
RONDELLE 10.5X22X2.3
WASHER (10.5X22X2.3)
|
||||
| # 13 |
01421-08403-000 01421-0840A-0000142108403000 |
STUD BOLT (8X40)
BOLT, DIFF MOUNT STUD |
||||
| # 13 |
09108-08144-000 0910808144000 0910808144000 |
GOUJON 8X40MM
BOLT, DIFF MOUNT STUD
|
||||
| # 14 |
01550-06253-000 01550-0625A-0000155006253000 |
BOLT
BOLT (L:25) |
||||
| # 15 |
01550-06303-000 01550-0630A-0000155006303000 |
BOLT
BOLT (L:30) |
||||
| # 16 |
01550-06403-000 01550-0640A-0000155006403000 |
BOLT
BOLT (L:40) |
||||
| # 17 |
01550-06403-000 01550-0640A-0000155006403000 |
BOLT
BOLT (L:40) |
||||
| # 18 |
04211-13189-000 0421113189000 0421113189000 |
DOUILLE 10.4X13X18
PIN
|
||||
| # 19 |
07120-06303-000 07120-0630B-0000712006303000 |
BOLT (L:30)
|
||||
| # 20 |
08316-10083-000 08316-1008B-0000831610083000 |
NUT
|
||||
| # 21 |
11171-41F00-000 1117141F00000 1117141F00000 |
CAP, CYL HEAD COVER FL
ENJOLIVEUR |
||||
| # 21 |
11171-41FA0-000 1117141FA0000 1117141FA0000 |
FL CAP
ENJOLIVEUR |
||||
| # 22 |
11172-41F00-000 1117241F00000 1117241F00000 |
CAP, CYL HEAD COVER FR
ENJOLIVEUR |
||||
| # 23 |
11175-38A11-000 1117538A11000 1117538A11000 |
CAP, INSPECTION INTAKE
|
||||
| # 24 |
11176-38A11-000 1117638A11000 1117638A11000 |
CAP, INSPECTION EXHAUST
|
||||
| # 25 |
11177-38A00-000 1117738A00000 1117738A00000 |
BAGUE DE JOINT
GASKET, INSPECTION CAP |
||||
| # 26 |
11179-10F10-000 1117910F10000 1117910F10000 |
SPACER, CYL HEAD COVER CAP NO.
SPACER, HEAD COVER CAP |
||||
| # 27 |
09108-06102-000 0910806102000 0910806102000 |
STUD BOLT
BOLT, INSPECTION CAP STUD |
||||
| # 28 |
09160-06084-000 0916006084000 0916006084000 |
WASHER
WASHER, HEAD COVER CAP UPPER
|
||||
| # 29 |
09160-09016-000 0916009016000 0916009016000 |
WASHER, 9.5X20X1.0
WASHER, HEAD COVER CAP LOWER |
||||
| # 30 |
09241-30004-000 0924130004000 0924130004000 |
COUVERCLE CAOUTCHOUC
PLUG, CYLINDER HEAD |
||||
| # 31 |
09320-09016-000 0932009016000 0932009016000 |
SILENTBLOC
CUSHION, HEAD COVER CAP
|
||||
| # 32 |
09320-13015-000 0932013015000 0932013015000 |
SILENTBLOC
CUSHION, HEAD COVER BOLT |
||||
| # 33 |
01547-06203-000 01547-0620B-0000154706203000 |
BOLT
BOLT, INSPECTION CAP |
||||
| # 34 |
01547-06507-000 0154706507000 0154706507000 |
VIS 6X50MM
BOLT, HEAD COVER CAP
|
||||
| # 35 |
08313-20063-000 08313-2006A-0000831320063000 |
NUT
NUT, INSPECTION CAP |
||||
| # 35 |
09159-06093-000 0915906093000 0915906093000 |
NUT
NUT, INSPECTION CAP |
||||
| # 36 |
09482-00330-000 0948200330000 0948200330000 |
BOUGIE DPR9EA-9
SPARK PLUG, DPR9EA-9 (NGK) |
||||
| # 36 |
09482-00331-000 09482-00334-0000948200331000 |
BOUGIE DPR8EA-9
SPARK PLUG, X27EPR-U9 (ND) |
||||
| # 36 |
09482-00335-000 0948200335000 0948200335000 |
SPARK PLUG X22EP
SPARK PLUG, X24EPR-U9 (ND) |
||||
| # 36 |
09482-00354-000 0948200354000 0948200354000 |
BOUGIE DPR7EA-9
SPARK PLUG, DPR7EA-9 (NGK) |
||||
| # 37 |
11181-41F00-000 1118141F00000 1118141F00000 |
UNION
RACCORD |
||||
| # 37 |
11181-45C10-000 1118145C10000 1118145C10000 |
UNION, WATER OUTLET
RACCORD |
||||
| # 38 |
11182-38A00-000 1118238A00000 1118238A00000 |
JOINT DU RACCORD
O RING, OUTLET UNION |
||||
| # 39 |
01550-06203-000 01550-0620B-0000155006203000 |
BOLT
|
||||
| # 39 |
07130-06203-000 07130-0620B-0000713006203000 |
BOLT
|
||||
| # 40 |
09301-08007-000 0930108007000 0930108007000 |
BUSH
BUSH, HEAD COVER BOLT |
||||
| # 41 |
17891-41F00-000 17891-41F10-0001789141F00000 |
UNION
RACCORD |
||||
| # 42 |
07130-06123-000 09106-06075-0000713006123000 |
VIS 6X12MM, NOIR
BOLT, JOINT UNION |
||||
| # 43 |
09280-16005-000 0928016005000 0928016005000 |
JOINT TORIQUE D: 2.4, ID: 15.8
O RING |
||||
| # 44 |
17854-41F00-000 17854-41F01-0001785441F00000 |
DURITE
RACCORD |
||||
| # 45 |
09402-28511-000 0940228511000 0940228511000 |
BRIDE DE TUYAU 28MM
CLAMP, JOINT
|
||||
| # 46 |
13650-57F00-000 1365057F00000 1365057F00000 |
SENSOR, AIR TEMP
CONTACTEUR |
||||
| # 47 |
09168-12017-000 0916812017000 0916812017000 |
BAGUE DE JOINT 12X17X1
WASHER
|
