Référence | Désignation | Prix Unitaire TTC | Qté | |||
---|---|---|---|---|---|---|
# 1 |
35710-22550-000 3571022550000 3571022550000 |
LAMP ASSY, RR COMBINATION
LAMP ASSY, REAR COMBINATION |
Non disponible | |||
# 1 |
35710-23010-000 3571023010000 3571023010000 |
LAMP ASSY, REAR COMBINATION
|
Non disponible | |||
# 2 |
35712-27630-000 35712-23011-0003571227630000 |
CABOCHON
DISCONTINUED |
Prix Unitaire TTC |
|||
# 3 |
35713-27630-000 3571327630000 3571327630000 |
GASKET, RR COMBI LAMP LENS
WASHER |
Prix Unitaire TTC |
|||
# 4 |
02111-04508-000 02112-0450A-0000211104508000 |
SCREW
DISCONTINUED |
Prix Unitaire TTC |
|||
# 4 |
09125-04002-000 02112-04558-0000912504002000 |
SCREW 4X55
SCREW |
Prix Unitaire TTC |
|||
# 5 |
09471-06008-000 0947106008000 0947106008000 |
BULB 6V10/3W
BULB 6V1.7W |
Prix Unitaire TTC |
|||
# 5 |
09471-06009-000 0947106009000 0947106009000 |
LAMPE 6V 17/5.3(21/3CP) BAY15D
BULB 6V1.7W |
Prix Unitaire TTC |
|||
# 6 |
35765-15010-000 3576515010000 3576515010000 |
SILENTBLOC 10X20X8.2
CUSHION |
Non disponible | |||
# 7 |
35766-15010-000 35766-37110-0003576615010000 |
PIECE DISTANCE
.SPACER |
Prix Unitaire TTC |
|||
# 8 |
35765-22210-000 3576522210000 3576522210000 |
SILENTBLOC
CUSHION |
Prix Unitaire TTC |
|||
# 9 |
35766-22210-000 3576622210000 |
SPACER, RR COMBINATION
DISCONTINUED |
Non disponible | |||
# 10 |
01107-06168-000 01500-06167-0000110706168000 |
VIS 6X16MM
BOLT, FENDER REAR |
Prix Unitaire TTC |
|||
# 10 |
01107-06208-000 01500-06207-0000110706208000 |
VIS 6X20MM
BOLT, ADJUSTER |
Prix Unitaire TTC |
|||
# 11 |
01107-06208-000 01500-06207-0000110706208000 |
VIS 6X20MM
BOLT, ADJUSTER |
Prix Unitaire TTC |
|||
# 11 |
01107-06258-000 01500-06257-0000110706258000 |
VIS 6X25MM
BOLT, RETURN |
Prix Unitaire TTC |
|||
# 12 |
09160-06020-000 09160-06066-0000916006020000 |
RONDELLE 6.5X20X1.6
.WASHER (6.5*20*1.6) |
Prix Unitaire TTC |
|||
# 12 |
09160-06027-000 09160-06077-0000916006027000 |
RONDELLE 6.5X20X1.2
WASHER (6.5X20X1.2) REFER TO FIG.8A (C-6) FOR MODE REFER TO FIG.8B (C-7) FOR MODE |
Prix Unitaire TTC |
|||
# 13 |
08322-21068-000 08322-0106A-0000832221068000 |
WASHER
RONDELLE * |
Prix Unitaire TTC |
|||
# 14 |
08310-11068-000 08310-00067-0000831011068000 |
ECROU 6MM
NUT FIG.42 (H-4) : E16, E18, E22, |
Prix Unitaire TTC |
|||
# 15 |
09308-05005-000 0930805005000 0930805005000 |
GROMMET
|
Prix Unitaire TTC |

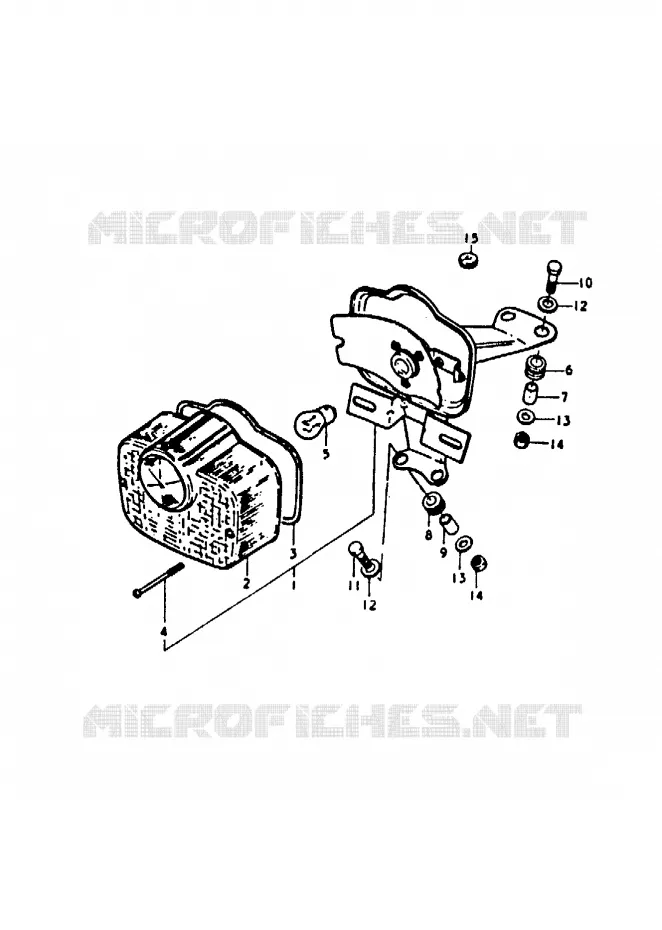

Suzuki A100
Cylindrée: 100 cc Année: 1992 Code modèle A100N(K / L / M / N / 4)
