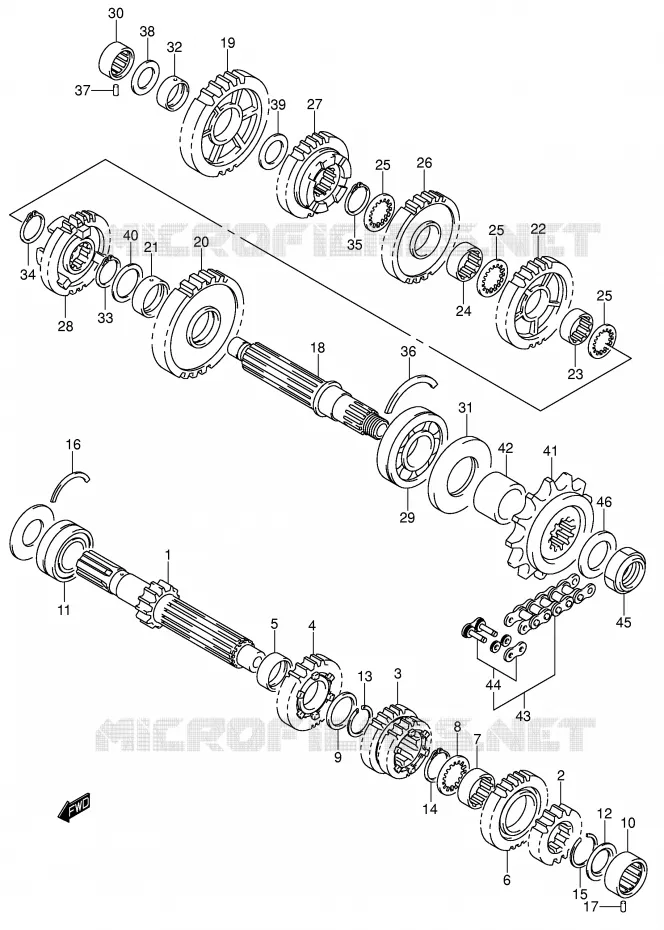

TRANSMISSION POUR SUZUKI GSX-R 600 2003

ENSEMBLE DE SELECTION DE VITESSES

(1) 24120-35F10-000

SHAFT,COUNTER(NT:14)
ARBRE

(2) 24221-39F00-000

2ND DRIVE GEAR
GEAR, 2ND DRIVE (NT:16)

(3) 24231-39F00-000

3RD & 4TH GEAR
PIGNON

(4) 24251-39F00-000

5TH DRIVE GEAR
PIGNON

(5) 24252-35F00-000

BUSH,5TH DRIVE GEAR
BAGUE

(6) 24261-39F00-000

6TH DRIVE GEAR
GEAR, 6TH DRIVE (NT:23)

(7) 24262-35F00-000

BUSH,6TH DRIVE GEAR
BAGUE

(8) 09167-27003-000

WASHER,27X36X2.5
WASHER, 6TH DRIVE

(9) 09181-27014-000

WASHER,27X36X2.5
WASHER, 5TH DRIVE

(10) 09263-20087-000

BEARING,20X34X13.5
BEARING, CNTR LH

(11) 09267-25013-000

BEARING
BEARING, CNTR RH

(12) 09285-20006-000

SIMMER 20X31.2X2.7
SEAL, OIL (20X31.2X2.7)

(13) 09380-27006-000

CIRCLIP
CIRCLIP, 5TH DRIVE

(14) 09380-27006-000

CIRCLIP
CIRCLIP, 6TH DRIVE

(15) 09380-27004-000

ANNEAU RETENUE 27MM
CIRCLIP, 2ND DRIVE

(16) 09390-58001-000

RONDELLE DEMI
C RING, CNTR RH

(17) 09261-06003-000

GOUJON
PIN, COUNTER SHAFT, LH

(18) 24131-35F01-000

SHAFT,DRIVE
ARBRE

(19) 24311-35F20-000

GEAR, 1ST DRIVEN (NT:39)

(20) 24321-39F01-000

2ND DRIVEN GEAR
PIGNON 2EME

(21) 24322-35F00-000

BUSH,2ND DRIVEN GEAR
BUSH, 2ND DRIVEN

(22) 24331-39F00-000

3RD DRIVEN GEAR
GEAR, 3RD DRIVEN (NT:32)

(23) 24332-35F00-000

BUSH,3RD DRIVEN GEAR
BAGUE

(24) 24332-35F00-000

BUSH,3RD DRIVEN GEAR
BAGUE

(25) 24333-02F00-000

3RD DRIVEN WASHER
RONDELLE TL1000R DL1000

(25) 24333-02F00-000

3RD DRIVEN WASHER
RONDELLE TL1000R DL1000

(25) 24333-02F00-000

3RD DRIVEN WASHER
RONDELLE TL1000R DL1000

(26) 24341-39F00-000

4TH DRIVEN GEAR
PIGNON GSX-R750/T&V GSX-R600/V

(27) 24351-39F00-000

5TH DRIVEN GEAR
PIGNON DE 5EME

(28) 24361-39F00-000

6TH DRIVEN GEAR
GEAR, 6TH DRIVEN (NT:25)

(29) 09262-28025-000

ROULEMENT A BILLE 28X70X18
BEARING, DRIVE SHAFT,LH

(30) 09263-20087-000

BEARING,20X34X13.5
BEARING, DRIVE SHAFT,RH

(31) 09283-36008-000

SIMMER 36X70X6
SEAL, DRIVE SHAFT,OIL

(32) 09300-22008-000

DOUILLE 22X26X9
BUSH, 1ST DRIVEN GEAR

(33) 09380-27006-000

CIRCLIP
CIRCLIP, 2ND DRIVEN GEAR

(34) 09380-27006-000

CIRCLIP
CIRCLIP, 3RD DRIVEN GEAR

(35) 09380-27006-000

CIRCLIP
CIRCLIP, 4TH DRIVEN GEAR

(36) 09390-70001-000

RONDELLE DEMI 67.6X75X2
C RING, DRIVE SHAFT,LH

(37) 09261-06003-000

GOUJON
PIN, DRIVE SHAFT,RH

(38) 09181-20251-000

RONDELLE SURETE 20X34X1.0
WASHER, 1ST DRIVEN RH

(39) 09181-22223-000

RONDELLE SURETE 22X34X1.0
WASHER, 1ST DRIVEN LH

(40) 09160-27008-000

RONDELLE 27X36X1
WASHER, 2ND DRIVEN

(41) 27510-20A10-000

PIGNON DE CHAINE 16D-525
SPROCKET, ENGINE (NT:17)

(42) 27531-35F01-000

SPACER. ENGINE SPROCKET
ENTRETOISE

(43) 27600-06G40-112

CHAIN ASSY (RK525SMOZ8.112L)
CHAIN ASSY (RK525SM,OZ6,110L)

(44) 27620-20A30-000

JOINT SET
RACCORD

(45) 09159-20004-000

ECROU 20MM
NUT, ENGINE SPROCKET

(46) 09160-25009-000

RONDELLE 25X41X3
WASHER (25X41X3)

	Référence	Désignation	Qté
# 1	24120-35F00-000 24120-35F10-000 2412035F00000	SHAFT, COUNTER(NT:14) ARBRE	247,39 €
# 2	24221-39F00-000 2422139F00000 2422139F00000	2ND DRIVE GEAR GEAR, 2ND DRIVE (NT:16)	102,38 €
# 3	24231-39F00-000 2423139F00000 2423139F00000	3RD & 4TH GEAR PIGNON	189,40 €
# 4	24251-39F00-000 2425139F00000 2425139F00000	5TH DRIVE GEAR PIGNON	128,24 €
# 5	24252-35F00-000 2425235F00000 2425235F00000	BUSH, 5TH DRIVE GEAR BAGUE	20,92 €
# 6	24261-39F00-000 2426139F00000 2426139F00000	6TH DRIVE GEAR GEAR, 6TH DRIVE (NT:23)	128,24 €
# 7	24262-35F00-000 2426235F00000 2426235F00000	BUSH, 6TH DRIVE GEAR BAGUE	24,07 €
# 8	09167-27003-000 0916727003000 0916727003000	WASHER, 27X36X2.5 WASHER, 6TH DRIVE	6,41 €
# 9	09181-27014-000 0918127014000 0918127014000	WASHER, 27X36X2.5 WASHER, 5TH DRIVE	5,92 €
# 10	09263-20087-000 0926320087000 0926320087000	BEARING, 20X34X13.5 BEARING, CNTR LH	37,93 €
# 11	09267-25013-000 0926725013000 0926725013000	BEARING BEARING, CNTR RH	78,69 €
# 12	09285-20006-000 0928520006000 0928520006000	SIMMER 20X31.2X2.7 SEAL, OIL (20X31.2X2.7)	5,77 €
# 13	09380-27006-000 0938027006000 0938027006000	CIRCLIP CIRCLIP, 5TH DRIVE	2,91 €
# 14	09380-27006-000 0938027006000 0938027006000	CIRCLIP CIRCLIP, 6TH DRIVE	2,91 €
# 15	09380-27004-000 0938027004000 0938027004000	ANNEAU RETENUE 27MM CIRCLIP, 2ND DRIVE	3,90 €
# 16	09390-58001-000 0939058001000 0939058001000	RONDELLE DEMI C RING, CNTR RH	2,95 €
# 17	09261-06003-000 0926106003000 0926106003000	GOUJON PIN, COUNTER SHAFT, LH	2,04 €
# 18	24131-35F00-000 24131-35F01-000 2413135F00000	SHAFT, DRIVE ARBRE	268,26 €
# 19	24311-35F00-000 24311-35F20-000 2431135F00000	GEAR, 1ST DRIVEN (NT:39)	125,51 €
# 20	24321-39F01-000 2432139F01000 2432139F01000	2ND DRIVEN GEAR PIGNON 2EME	131,93 €
# 21	24322-35F00-000 2432235F00000 2432235F00000	BUSH, 2ND DRIVEN GEAR BUSH, 2ND DRIVEN	17,81 €
# 22	24331-39F00-000 2433139F00000 2433139F00000	3RD DRIVEN GEAR GEAR, 3RD DRIVEN (NT:32)	139,76 €
# 23	24332-35F00-000 2433235F00000 2433235F00000	BUSH, 3RD DRIVEN GEAR BAGUE	23,80 €
# 24	24332-35F00-000 2433235F00000 2433235F00000	BUSH, 3RD DRIVEN GEAR BAGUE	23,80 €
# 25	24333-02F00-000 2433302F00000 2433302F00000	3RD DRIVEN WASHER RONDELLE TL1000R DL1000	9,32 €
# 26	24341-39F00-000 2434139F00000 2434139F00000	4TH DRIVEN GEAR PIGNON GSX-R750/T&V GSX-R600/V	Non disponible	0,00 €
# 27	24351-39F00-000 2435139F00000 2435139F00000	5TH DRIVEN GEAR PIGNON DE 5EME	130,88 €
# 28	24361-39F00-000 2436139F00000 2436139F00000	6TH DRIVEN GEAR GEAR, 6TH DRIVEN (NT:25)	133,57 €
# 29	09262-28025-000 0926228025000 0926228025000	ROULEMENT A BILLE 28X70X18 BEARING, DRIVE SHAFT, LH	131,41 €
# 30	09263-20087-000 0926320087000 0926320087000	BEARING, 20X34X13.5 BEARING, DRIVE SHAFT, RH	37,93 €
# 31	09283-36008-000 0928336008000 0928336008000	SIMMER 36X70X6 SEAL, DRIVE SHAFT, OIL	15,77 €
# 32	09300-22008-000 0930022008000 0930022008000	DOUILLE 22X26X9 BUSH, 1ST DRIVEN GEAR	10,58 €
# 33	09380-27006-000 0938027006000 0938027006000	CIRCLIP CIRCLIP, 2ND DRIVEN GEAR	2,91 €
# 34	09380-27006-000 0938027006000 0938027006000	CIRCLIP CIRCLIP, 3RD DRIVEN GEAR	2,91 €
# 35	09380-27006-000 0938027006000 0938027006000	CIRCLIP CIRCLIP, 4TH DRIVEN GEAR	2,91 €
# 36	09390-70001-000 0939070001000 0939070001000	RONDELLE DEMI 67.6X75X2 C RING, DRIVE SHAFT, LH	6,50 €
# 37	09261-06003-000 0926106003000 0926106003000	GOUJON PIN, DRIVE SHAFT, RH	2,04 €
# 38	09181-20251-000 0918120251000 0918120251000	RONDELLE SURETE 20X34X1.0 WASHER, 1ST DRIVEN RH	3,22 €
# 39	09181-22223-000 0918122223000 0918122223000	RONDELLE SURETE 22X34X1.0 WASHER, 1ST DRIVEN LH	3,44 €
# 40	09160-27008-000 0916027008000 0916027008000	RONDELLE 27X36X1 WASHER, 2ND DRIVEN	3,42 €
# 41	27510-20A10-000 2751020A10000 2751020A10000	PIGNON DE CHAINE 16D-525 SPROCKET, ENGINE (NT:17)	44,72 €
# 42	27531-35F00-000 27531-35F01-000 2753135F00000	SPACER. ENGINE SPROCKET ENTRETOISE	20,08 €
# 43	27600-20A30-110 27600-06G40-112 2760020A30110	CHAIN ASSY (RK525SMOZ8.112L) CHAIN ASSY (RK525SM, OZ6, 110L)	190,27 €
# 44	27620-20A30-000 2762020A30000 2762020A30000	JOINT SET RACCORD	16,57 €
# 45	09159-20004-000 0915920004000 0915920004000	ECROU 20MM NUT, ENGINE SPROCKET	13,02 €
# 46	09160-25009-000 0916025009000 0916025009000	RONDELLE 25X41X3 WASHER (25X41X3)	6,03 €

Attention, les pièces proposées à la vente sont les pièces du catalogue constructeur, notez que nous devons parfois les commander spécialement pour vous chez Suzuki. Veuillez vous référer à la rubrique Expédition et Livraison pour plus d'informations sur les délais de livraison.
Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions et vous conseiller au mieux.
Lors de l'ajout d'une pièce au panier, faites attention à bien commander la quantité souhaitée. Veuillez noter que le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
Nos pièces sont neuves et d'origine Suzuki, pour vous garantir des composants durables de qualité. En cas de problème, n'hésitez pas à nous contacter.
