EMBRAYAGE

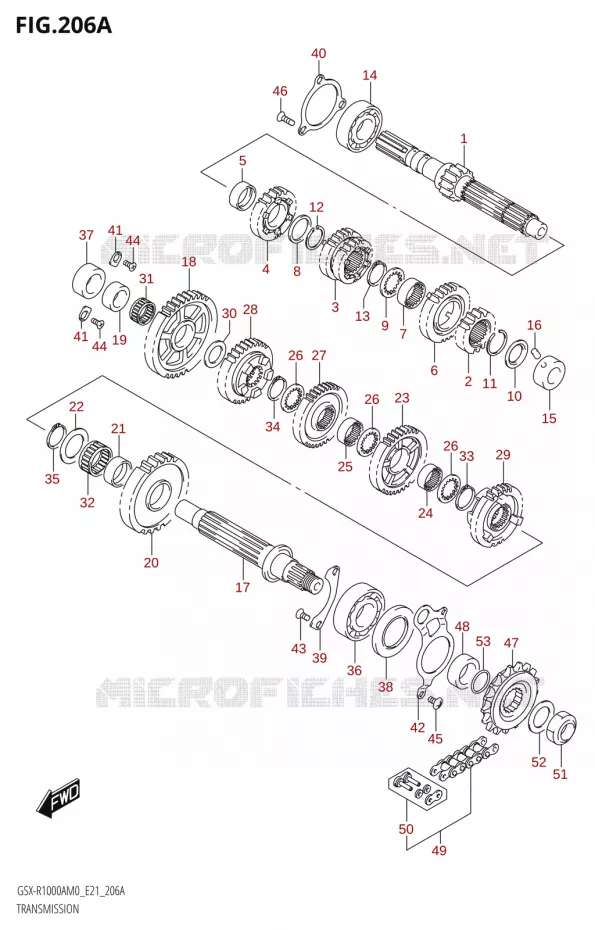

TRANSMISSION POUR SUZUKI GSX-R 1000 2020

ENSEMBLE SELECTEUR DE VITESSES

(1) 24120-17K10-000

SHAFT,CNTR (NT:16)

(2) 24221-40F30-000

GEAR,2ND DRIVE
GEAR,2ND DRIVE (NT:19)

(3) 24231-47H10-000

GEAR. 3RD & 4TH DRIVE
GEAR,3RD & 4TH DRIVE (NT:21/24 )

(4) 24251-47H20-000

GEAR,5TH DRIVE (NT:25)

(5) 24252-24F20-000

BUSH,5TH DRIVE GEAR

(6) 24261-47H20-000

GEAR,6TH DRIVE (NT:26)

(7) 24262-24F20-000

BUSH,6TH DRIVE GEAR

(8) 09160-27008-000

RONDELLE 27X36X1
WASHER (27X36X1)

(9) 09167-27001-000

RONDELLE DE SURETE 27X36X1
WASHER,LOCK (27X36X1)

(10) 09285-20006-000

SIMMER 20X31.2X2.7
SEAL,OIL (20X31.2X2.7)

(11) 09380-27004-000

ANNEAU RETENUE 27MM
CIRCLIP

(12) 09380-27006-000

CIRCLIP

(13) 09380-27006-000

CIRCLIP

(14) 09262-25001-000

BEARING

(15) 09263-20114-000

BEARING
BEARING,COUNTER SHAFT,L

(16) 04221-07129-000

BOULON 7X12
PIN

(17) 24131-17K00-000

SHAFT,DRIVE

(18) 24311-47H00-000

GEAR,1ST DRIVEN (NT:41)

(19) 24315-17K00-000

SPACER. IST DRIVEN GEAR
SPACER,1ST DRIVEN GEAR

(20) 24321-17K00-000

GEAR,2ND DRIVEN (NT:39)

(21) 24322-17K00-000

BUSH,2ND DRIVEN GEAR

(22) 24323-17K00-000

WASHER,2ND DRIVEN GEAR

(23) 24331-47H20-000

GEAR,3RD DRIVEN (NT:36)

(24) 24332-24F20-000

BUSH,3RD DRIVEN GEAR

(25) 24332-24F20-000

BUSH,3RD DRIVEN GEAR

(26) 24333-47H00-000

WASHER. 3RD & 4TH DRIVE
WASHER,3RD & 4TH DRIVEN GEAR

(26) 24333-47H00-000

WASHER. 3RD & 4TH DRIVE
WASHER,3RD & 4TH DRIVEN GEAR

(26) 24333-47H00-000

WASHER. 3RD & 4TH DRIVE
WASHER,3RD & 4TH DRIVEN GEAR

(27) 24341-47H10-000

GEAR,4TH DRIVEN (NT:36)

(28) 24351-47H00-000

GEAR,5TH DRIVEN (NT:34)

(29) 24361-17K00-000

GEAR,6TH DRIVEN (NT:33)

(30) 09181-24005-000

WASHER,24X34X1
SHIM (24X34X1)

(31) 09263-24030-000

BEARING (24X28X13)

(32) 09263-35045-000

BEARING (35X40X12)

(33) 09380-30009-000

CIRCLIP

(34) 09380-30009-000

CIRCLIP

(35) 09380-30009-000

CIRCLIP

(36) 09262-30001-000

BEARING

(37) 09263-22074-000

BEARING
BEARING,DRIVE SHAFT,R

(38) 09283-40043-000

OIL SEAL
SEAL,DRIVE SHAFT OIL

(39) 24741-06G00-000

RETAINER,DRIVE SHAFT BRG

(40) 24741-17K00-000

RETAINER,COUNTER SHAFT BRG

(41) 24741-20A00-000

TOLE FIXATION DE ROULEMENT
RETAINER,COUNTER BEARING,R

(41) 24741-20A00-000

TOLE FIXATION DE ROULEMENT
RETAINER,COUNTER BEARING,R

(42) 24751-17K00-000

RETAINER. CL PUSH ROD OIL SEA
RETAINER,CL PUSH ROD OIL SEAL

(43) 09126-06011-000

VIS 6X12MM
SCREW (6X12)

(44) 09126-06011-000

VIS 6X12MM
SCREW (6X12)

(44) 09126-06011-000

VIS 6X12MM
SCREW (6X12)

(45) 09139-06153-000

SCREW. PUSH ROD
SCREW (6X13)

(46) 09139-06159-000

SCREW. DRIVE SHAFT (6X20)
SCREW (6X20)

(47) 27510-17K00-000

SPROCKET,ENGINE (NT:17)

(48) 27531-17K00-000

SPACER,ENGINE SPROCKET

(49) 27600-17K00-120

CHAIN ASSY,DRIVE (DID525HV3)

(50) 27620-17K00-000

JOINT SET. DRIVE CHAIN
.JOINT SET (DID525HV3)

(51) 09159-22008-000

NUT. ENGINE SPROCKET
NUT

(52) 09181-27016-000

WASHER. ENGINE SPROCKET
SHIM (27X42X1.5)

(53) 09280-26005-000

JOINT TORIQUE D: 2.4, ID: 26.2
O-RING (D:2.4,ID:26.2)

	Référence	Désignation	Qté
# 1	24120-17K10-000 2412017K10000 2412017K10000	SHAFT, CNTR (NT:16)	274,48 €
# 2	24221-40F30-000 24221-40F30-000 2422140F30000	GEAR, 2ND DRIVE GEAR, 2ND DRIVE (NT:19)	106,77 €
# 3	24231-47H10-000 2423147H10000 2423147H10000	GEAR. 3RD & 4TH DRIVE GEAR, 3RD & 4TH DRIVE (NT:21/24 )	157,63 €
# 4	24251-47H20-000 2425147H20000 2425147H20000	GEAR, 5TH DRIVE (NT:25)	127,71 €
# 5	24252-24F20-000 2425224F20000 2425224F20000	BUSH, 5TH DRIVE GEAR	50,87 €
# 6	24261-47H20-000 2426147H20000 2426147H20000	GEAR, 6TH DRIVE (NT:26)	127,71 €
# 7	24262-24F20-000 2426224F20000 2426224F20000	BUSH, 6TH DRIVE GEAR	27,73 €
# 8	09160-27008-000 0916027008000 0916027008000	RONDELLE 27X36X1 WASHER (27X36X1)	3,42 €
# 9	09167-27001-000 0916727001000 0916727001000	RONDELLE DE SURETE 27X36X1 WASHER, LOCK (27X36X1)	4,97 €
# 10	09285-20006-000 0928520006000 0928520006000	SIMMER 20X31.2X2.7 SEAL, OIL (20X31.2X2.7)	5,77 €
# 11	09380-27004-000 0938027004000 0938027004000	ANNEAU RETENUE 27MM CIRCLIP	3,90 €
# 12	09380-27006-000 0938027006000 0938027006000	CIRCLIP	2,91 €
# 13	09380-27006-000 0938027006000 0938027006000	CIRCLIP	2,91 €
# 14	09262-25001-000 0926225001000 0926225001000	BEARING	39,95 €
# 15	09263-20114-000 0926320114000 0926320114000	BEARING BEARING, COUNTER SHAFT, L	51,20 €
# 16	04221-07129-000 0422107129000 0422107129000	BOULON 7X12 PIN	1,95 €
# 17	24131-17K00-000 2413117K00000 2413117K00000	SHAFT, DRIVE	247,99 €
# 18	24311-47H00-000 2431147H00000 2431147H00000	GEAR, 1ST DRIVEN (NT:41)	129,46 €
# 19	24315-17K00-000 2431517K00000 2431517K00000	SPACER. IST DRIVEN GEAR SPACER, 1ST DRIVEN GEAR	26,69 €
# 20	24321-17K00-000 2432117K00000 2432117K00000	GEAR, 2ND DRIVEN (NT:39)	129,46 €
# 21	24322-17K00-000 2432217K00000 2432217K00000	BUSH, 2ND DRIVEN GEAR	29,95 €
# 22	24323-17K00-000 2432317K00000 2432317K00000	WASHER, 2ND DRIVEN GEAR	9,34 €
# 23	24331-47H20-000 2433147H20000 2433147H20000	GEAR, 3RD DRIVEN (NT:36)	129,46 €
# 24	24332-24F20-000 2433224F20000 2433224F20000	BUSH, 3RD DRIVEN GEAR	27,73 €
# 25	24332-24F20-000 2433224F20000 2433224F20000	BUSH, 3RD DRIVEN GEAR	27,73 €
# 26	24333-47H00-000 2433347H00000 2433347H00000	WASHER. 3RD & 4TH DRIVE WASHER, 3RD & 4TH DRIVEN GEAR	8,14 €
# 27	24341-47H10-000 2434147H10000 2434147H10000	GEAR, 4TH DRIVEN (NT:36)	131,17 €
# 28	24351-47H00-000 2435147H00000 2435147H00000	GEAR, 5TH DRIVEN (NT:34)	129,46 €
# 29	24361-17K00-000 2436117K00000 2436117K00000	GEAR, 6TH DRIVEN (NT:33)	123,89 €
# 30	09181-24005-000 0918124005000 0918124005000	WASHER, 24X34X1 SHIM (24X34X1)	4,02 €
# 31	09263-24030-000 0926324030000 0926324030000	BEARING (24X28X13)	15,86 €
# 32	09263-35045-000 0926335045000 0926335045000	BEARING (35X40X12)	15,44 €
# 33	09380-30009-000 0938030009000 0938030009000	CIRCLIP	3,90 €
# 34	09380-30009-000 0938030009000 0938030009000	CIRCLIP	3,90 €
# 35	09380-30009-000 0938030009000 0938030009000	CIRCLIP	3,90 €
# 36	09262-30001-000 0926230001000 0926230001000	BEARING	44,30 €
# 37	09263-22074-000 0926322074000 0926322074000	BEARING BEARING, DRIVE SHAFT, R	50,93 €
# 38	09283-40043-000 0928340043000 0928340043000	OIL SEAL SEAL, DRIVE SHAFT OIL	23,38 €
# 39	24741-06G00-000 2474106G00000 2474106G00000	RETAINER, DRIVE SHAFT BRG	6,77 €
# 40	24741-17K00-000 2474117K00000 2474117K00000	RETAINER, COUNTER SHAFT BRG	20,23 €
# 41	24741-20A00-000 2474120A00000 2474120A00000	TOLE FIXATION DE ROULEMENT RETAINER, COUNTER BEARING, R	5,99 €
# 42	24751-17K00-000 2475117K00000 2475117K00000	RETAINER. CL PUSH ROD OIL SEA RETAINER, CL PUSH ROD OIL SEAL	14,07 €
# 43	09126-06011-000 0912606011000 0912606011000	VIS 6X12MM SCREW (6X12)	2,15 €
# 44	09126-06011-000 0912606011000 0912606011000	VIS 6X12MM SCREW (6X12)	2,15 €
# 45	09139-06153-000 0913906153000 0913906153000	SCREW. PUSH ROD SCREW (6X13)	2,86 €
# 46	09139-06159-000 0913906159000 0913906159000	SCREW. DRIVE SHAFT (6X20) SCREW (6X20)	3,82 €
# 47	27510-17K00-000 2751017K00000 2751017K00000	SPROCKET, ENGINE (NT:17)	64,25 €
# 48	27531-17K00-000 2753117K00000 2753117K00000	SPACER, ENGINE SPROCKET	20,94 €
# 49	27600-17K00-120 2760017K00120 2760017K00120	CHAIN ASSY, DRIVE (DID525HV3)	272,01 €
# 50	27620-17K00-000 2762017K00000 2762017K00000	JOINT SET. DRIVE CHAIN .JOINT SET (DID525HV3)	15,57 €
# 51	09159-22008-000 0915922008000 0915922008000	NUT. ENGINE SPROCKET NUT	22,49 €
# 52	09181-27016-000 0918127016000 0918127016000	WASHER. ENGINE SPROCKET SHIM (27X42X1.5)	6,41 €
# 53	09280-26005-000 0928026005000 0928026005000	JOINT TORIQUE D: 2.4, ID: 26.2 O-RING (D:2.4, ID:26.2)	2,95 €

Attention, les pièces proposées à la vente sont les pièces du catalogue constructeur, notez que nous devons parfois les commander spécialement pour vous chez Suzuki. Veuillez vous référer à la rubrique Expédition et Livraison pour plus d'informations sur les délais de livraison.
Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions et vous conseiller au mieux.
Lors de l'ajout d'une pièce au panier, faites attention à bien commander la quantité souhaitée. Veuillez noter que le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
Nos pièces sont neuves et d'origine Suzuki, pour vous garantir des composants durables de qualité. En cas de problème, n'hésitez pas à nous contacter.
